Visofold 6000 Bi-folding Doors
High Quality, High Performance Slide & Fold Bifold Doors
Visofold 6000 is a high-quality, high-performance slide and fold door. Featuring slim profiles, the door provides a contemporary, elegant solution for both residential and commercial applications.
Key Features
Door panels are moved to the side and then swung open
Slim lines and discrete hardware maximise light
Fully compliant with latest building regulations
Dual colour possible
High-security glazing, robust locking mechanisms
Easy access low or rebated threshold accessibility options
Visofold 6000
The Visofold 6000 slide and fold door offers extremely slim profiles which are perfectly suited to residential properties where narrow sight lines and maximum glass areas are required
Low threshold custom design option for unimpeded easy access tailored to your individual specification, which ensure the perfect finish at floor level or rebated thresholds that improve weather resistance.
Visofold 6000’s flexibility also makes it suitable for commercial projects.
Where large opening apertures are required, the system offers maximum light and space to give unimpeded views.
This highly-versatile, easy-to-operate system is the perfect option for even the largest project. Capable of opening up an entire wall, yet presenting a contemporary, elegant glazed façade when closed.

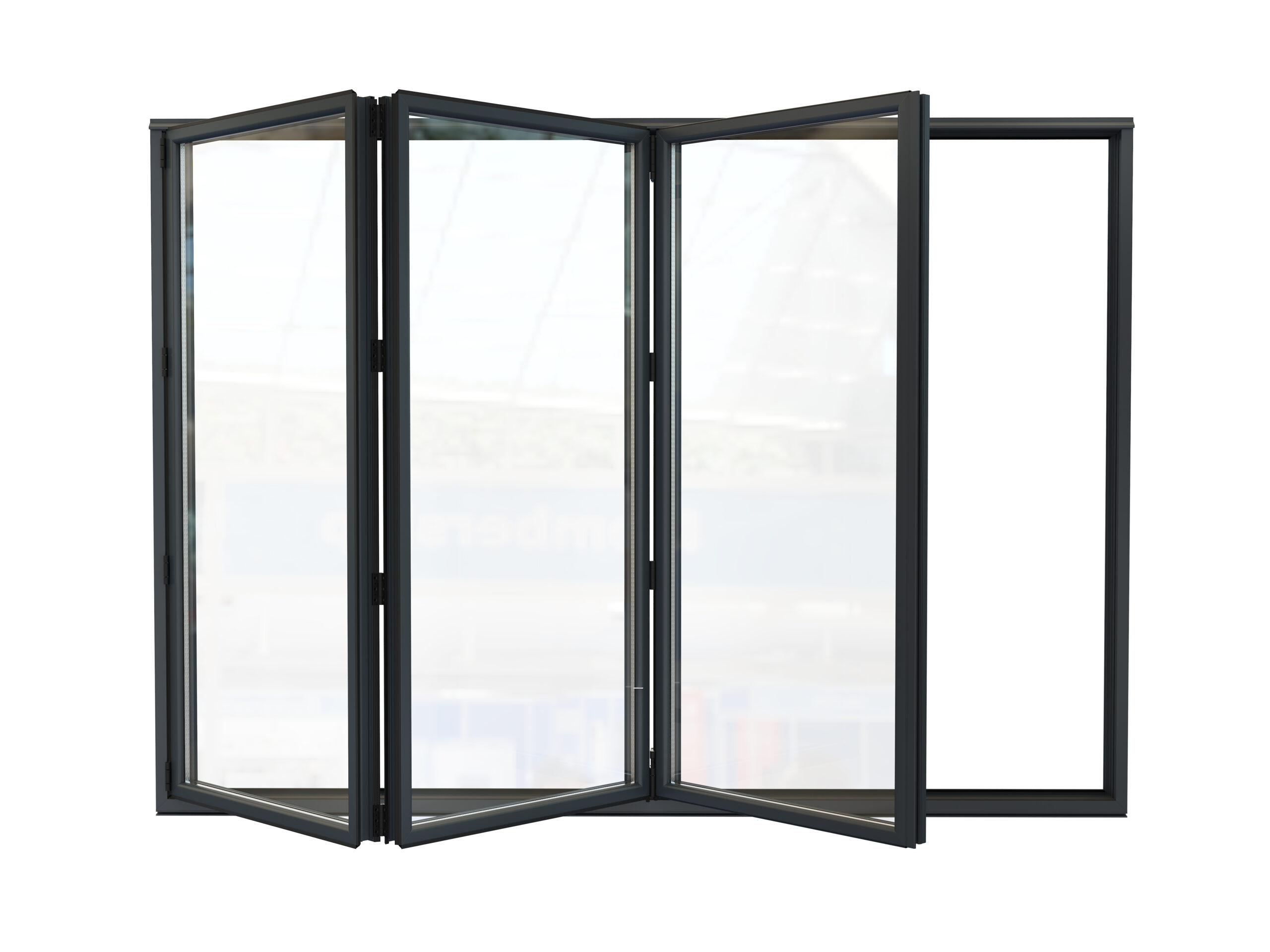

The system features a choice of internally or externally folding sashes, which when open, sit flush to the frame. Sashes are hung from a floating mullion and slide on a recessed bottom roller and top guide. This allows for ultra-slim profiles, smooth operation and robust security.
Product Information
Slide & Fold Door
- Smooth, easy and reliable operation
- Integrates outdoor and indoor living space
With high-security glazing, robust locking mechanisms (including multi-point locks on the main opening sashes, and shoot-bolts on the floating mullions), an unrivalled colour range and the option of colour-matched accessories, the system can be tailored to meet each project’s specific requirements.

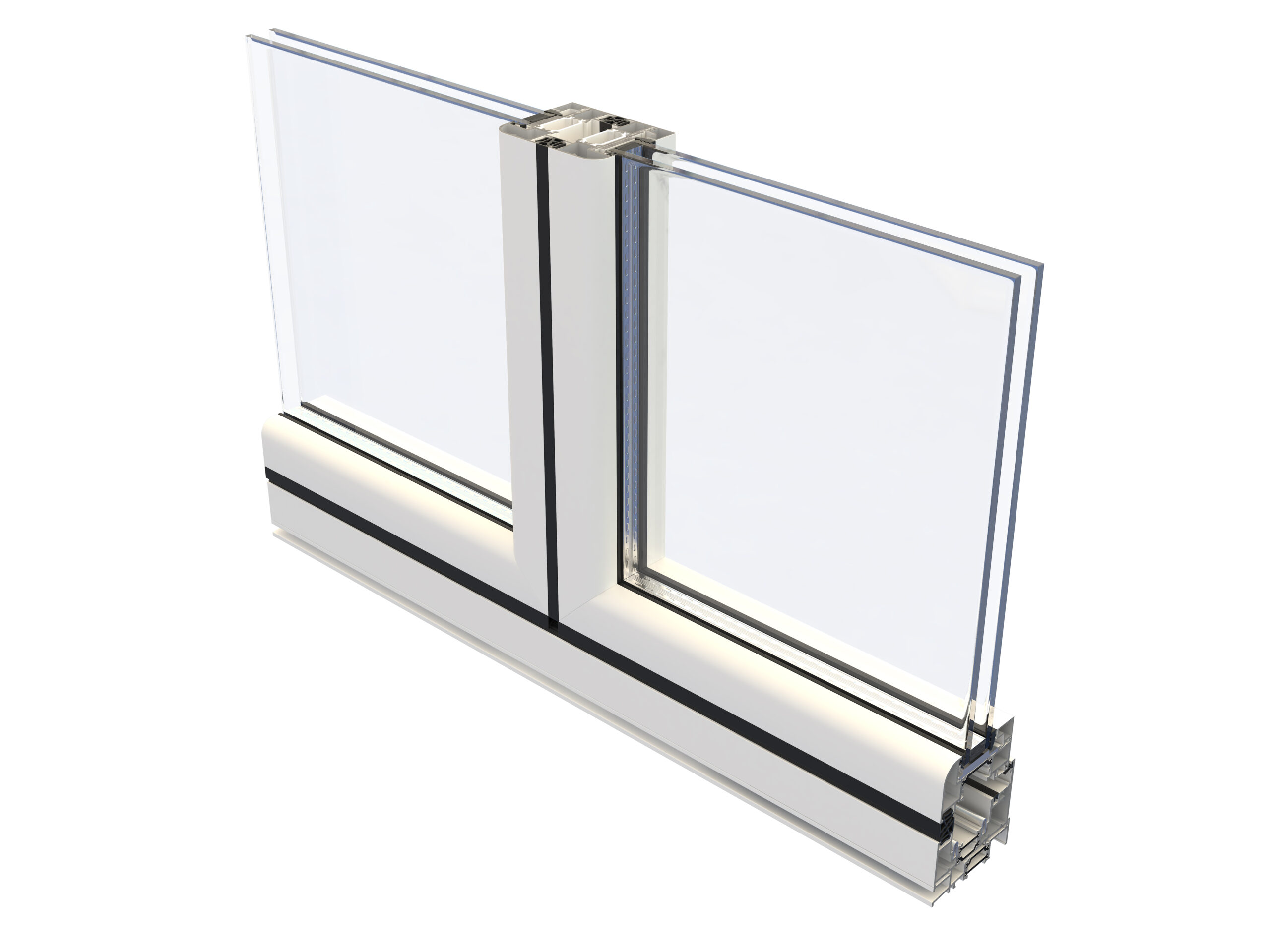

Delivering the perfect combination of strength and performance, Visofold 6000 profiles feature a polyamide thermal break that enhances the system’s thermal performance. High quality PDM gaskets and weather brushes aid weather resistance.
Fully compliant with the requirements of Building Regulations Document L 2010, the doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance.
Technical Specification
Technical Performance
| U Value | 1.4W/m2K using a 0.9 centre pane |
|---|---|
| Air | Class 2, 450Pa |
| Water Class | 8A, 450Pa; |
| Wind Class | 3, 1200Pa |
Design Specification
| Frame Width | 88mm |
|---|---|
| Frame Depth | 76 or 82mm |
| Glazing | 28mm |
| Typical Sight Line | 94mm for Slide and Fold Door |
| Max Sash Height | 2200mm |
| Max Sash Width | 1000mm |
| Max Sash Weight | 100KG |
