Built-In Integral Blinds
Sliding Patio Doors – Windows – Bifold Doors – French Doors

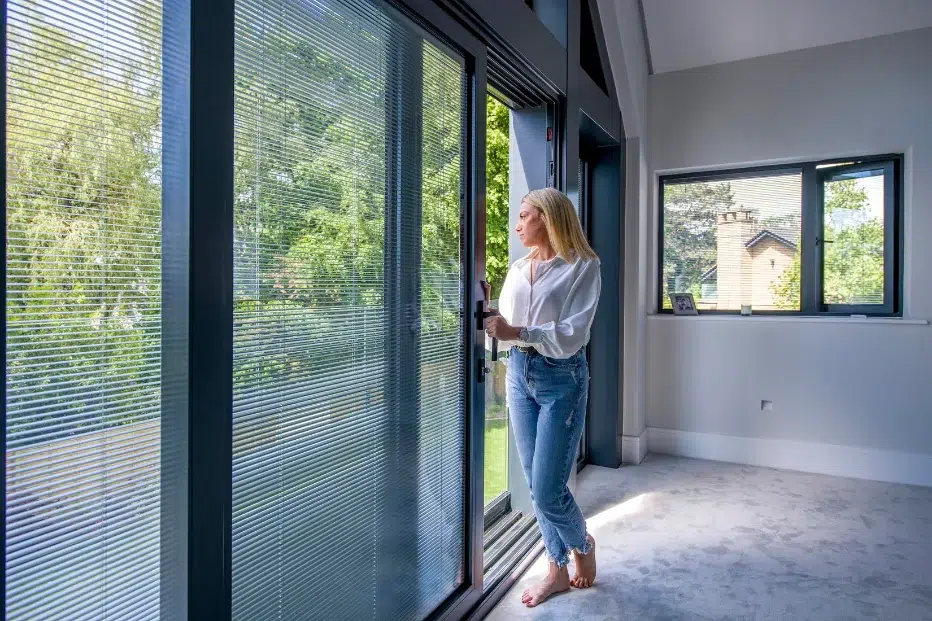

Integral blinds are built into the glazing cavity of bifold, sliding and French patio doors.
All of our systems feature the world’s number one integrated blind system, Screenline, providing seamless protection from glare with no need for you to clean and can be fitted to any window or door with a cavity of at least 20mm.
At Marlin, our high-quality aluminium windows and doors are backed by our high-quality customer service. Our expert technical advisors are just a phone call away to answer all your questions no matter how technical.
We provide a FREE sample service to assist with surveying decisions, design considerations, or planning applications – just pick up the phone and ask.
Built in Yorkshire, delivered nationwide.
Key Features
Add privacy
Eliminate glare
Dust free – No cleaning – Ever!
Control temperature
Easy manual or automatic operation
Wide range of colours
Thank-you Marlin Windows for a great job! You designed and built all the windows in our renovation project including sliding doors and bi-folds with care and consideration. The service was exceptional, no request was too much trouble. The installation team were great, very friendly and thorough. I have no hesitation in recommending Marlin, we are very pleased with the results.
Stephen Jackson
Choose integral pleated or venetian blinds for your patio doors
Unrivalled Style
Combine the built-in, always new look of pleated or venetian blinds, with the Marlin range of slim frame, stylish aluminium windows, french doors, bi-fold doors or sliding patio doors.
No More Cleaning
The blinds are fitted within the dust-free glazing cavity, meaning no cleaning is required. Ever!
Choose manual or electronic operation.
All of our systems feature the world’s number one integral blind system, ScreenLine®.
C system – magnetic control
The C system, designed with the rotational, frontal, magnetic control for raising and tilting a blind integrated within a double-glazed unit, utilises the force produced by two coupled, rotational, magnetic devices.
One set of magnets is inserted in the blind head rail within the cavity and the other applied to the external glass surface.
SV system – Cordless slider
The ScreenLine® SL20SV system is a manually operated sliding Venetian blind which features a single, cleverly designed magnetic slider to control the whole operation.
Positioned on a narrow slide guide on the edge of the sealed unit, this allows the blind to be raised, lowered and tilted with ease completely cord free.
S system – Slider
The ScreenLine® SL20S is a manual system comprising a 14mm pleated blind integrated within a double-glazed unit with 20mm cavity.
The blind movement is achieved by a magnetic device positioned centrally on the outer surface of the internal pane sliding across the glass surface.
This external magnet interfaces with a similar internal magnet located in the movable rail and it is so designed to absorb possible glass deflections.
COLOURS AND GLAZING
Our aluminium frames are polyester powder coated by our systems suppliers using the very latest paint application techniques guaranteed for 25 years.
Fully compliant with the latest June 2022 building regulations, our standard double glazing is the exceptional light-transmitting, energy-saving ClimaGuard® A+ low-emissivity (Low-E) glass manufactured by Guardian Glass.
John Roman – Queensbury
Latest projects
BI FOLD DOORS

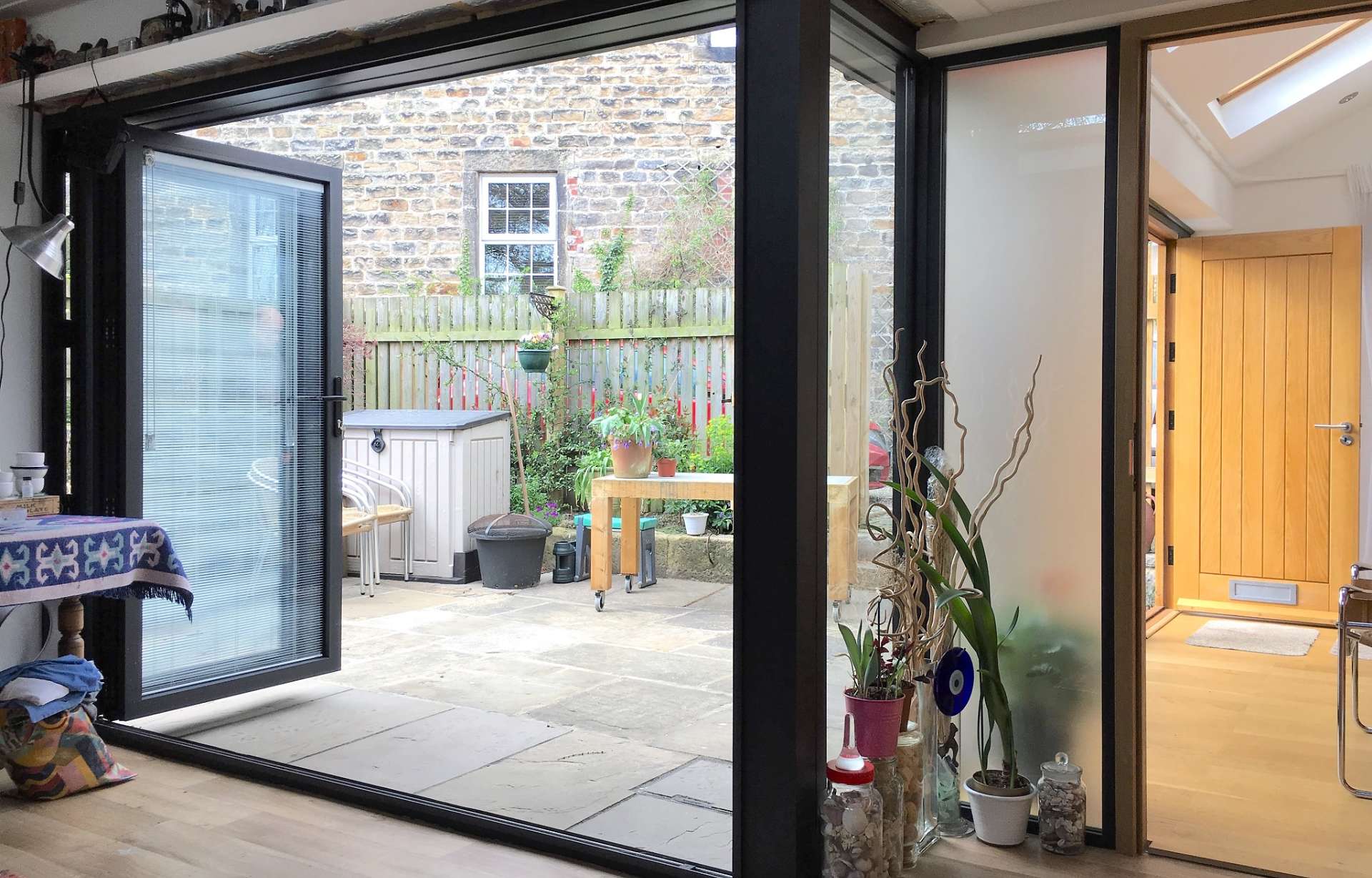

The Art Studio, Bifold Doors – Addingham
BI FOLD DOORS
Bifold Doors – Steeton New Build
Why choose Marlin?
Reasons why you should expect 100% satisfaction.
Quality Control
We believe that our quality standards are unrivalled. Our manufacturing processes and activities are monitored with well defined controls and inspection procedures are performed by trained personnel.
Care
We respect you, your property and your project taking care over each detail from order to delivery to your post installation satisfaction.
Project Focus
Your project is important to us. We manufacture to your made to measure requirements so that we get it exactly right. See example case studies of our project work.
Explore our range of related patio doors and integral blinds.
Frequently Asked Questions
If you require any support, please don’t hesitate to review our FAQ’s below or drop us a message on our contact form here
What are integral blinds, and how do they work?
Integrated blinds feature Venetian or Pleated blinds sealed within the glazing cavity of the door. These blinds are operated using external magnetic controls, allowing users to raise, lower or tilt them without touching the blinds directly. This design protects the blinds from dust and damage, ensuring longevity and ease of use .
What are the benefits of built-in blinds?
Built-in blinds offer several key advantages over traditional external blinds:
-
Low maintenance: Being enclosed within glass, they remain dust-free and require no cleaning.
-
Enhanced safety: No external cords make them child- and pet-safe.
-
Sleek appearance: The integrated design provides a modern, clutter-free look.
-
Improved durability: Protected from external elements, they are less prone to damage.
-
Efficient light and temperature control: They help in managing glare and indoor temperatures effectively .
Are integral blinds available for all types doors?
We offer integral blinds for all types of patio, sliding, French and bifold doors. In fact, we can integrate blinds into any glass window or door, provided the window has a sealed cavity of 20mm or more.
