MC 600 Floor To Ceiling Windows
Create breathtaking designs
MC 600 is the floor to ceiling solution for both small and large scale multi-storey commercial or residential buildings and ground floor treatment. Commercial glazing technology has now become available for incredible residential feature windows. Breath taking contemporary designs can be achieved limited only by the power of your imagination.
Key Features
Options for sloped or faceted facades
Incorporates an extensive range of windows and doors
CWCT certified
Ground floor or multi-storey
Provides impressive, practical and economic glazed facades
Dual colour possible

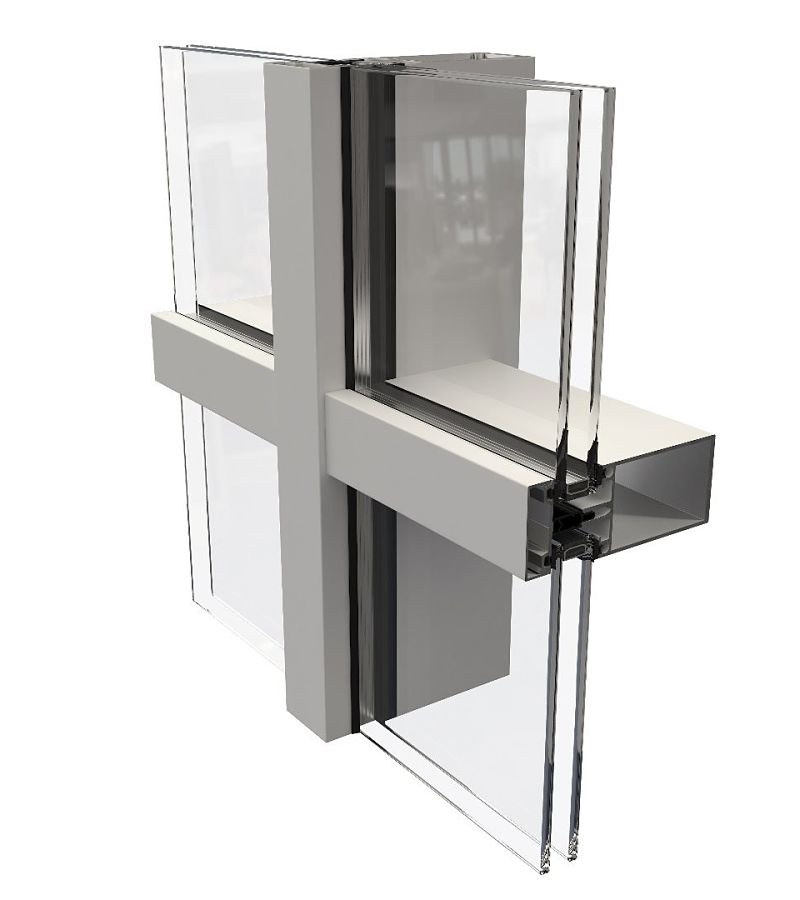

MC 600 is an impressive curtain wall system capable of providing impressive, practical and cost effective glazed facades.
Product Information
MC 600 benefits from an inter-changeable transom/mullion profile that allows fabricators to utilise the same section for both purposes, whilst achieving consistent sight lines.Depending on requirements MC600 can either be assembled on-site as a stick built system, or alternatively part assembled in the factory. MC600 can incorporate Smart window and door inserts.
- Ground floor or multi-storey
- Options for sloped or faceted facades
- Incorporates an extensive range of windows and doors
- CWCT certified
Technical Specification
General
| Brand | MC |
|---|---|
| Material | Aluminium Polyamide |
| Dual Colour | ✔ |
| Thermally broken | ✔ |
| NBS available | ✔ |
Performance
| U Value | 0.85W/m²K (0.7 centre pane) 1.1W/m²K (1.0 centre pane) |
|---|---|
| Air | 600Pa |
| Water | 600Pa |
| Wind | 2400Pa |
| Document L Compliant | ✔ |
| CWCT | ✔ |
Dimensions
| Glazing (mm) | 24mm – 42mm sealed units |
|---|---|
| Typical Sightlines (mm) | 55mm |
Latest projects
CONTEMPORARY WINDOWS
Marston Lodge Farm – Vale of York
HERITAGE DOORS
York – Yes they are aluminium!
BI FOLD DOORS
Steeton New Build
COLOURS AND GLAZING
Our aluminium profiles are polyester powder coated by our systems suppliers using the very latest paint application techniques guaranteed for 25 years.
Fully compliant to the latest June 2022 building regulations our standard double glazing is the exceptional light transmitting, energy saving ClimaGuard® A+ low emissivity (Low-E) glass manufactured by Guardian Glass.
Why choose Marlin?
Reasons why you should expect 100% satisfaction.
Quality Control
We believe that our quality standards are unrivalled. Our manufacturing processes and activities are monitored with well defined controls and inspection procedures are performed by trained personnel.
Care
We respect you, your property and your project taking care over each detail from order to delivery to your post installation satisfaction.
Project Focus
Your project is important to us. We manufacture to your made to measure requirements so that we get it exactly right. See example case studies of our project work.
Frequently Asked Questions
If you require any support, please don’t hesitate to review our FAQ’s below or drop us a message on our contact form here
How energy efficient are your windows & doors?
All of our products are very thermally efficient; they meet and exceed all current building regulations.
Our aluminium profiles are thermally broken and benefit from high performance double glazing with a centre pane U Value of 1.2 W/m2 as standard. The maximum overall U value of any of our products is 1.6 W/m2, with many of our door and window products offering even lower U Values.
What information must be provided in order to get an accurate quotation?
We will ask you to provide the following information:
- Approximate dimensions (width x height)
- Basic design/layout
- Project location
How long will my quotation take?
We aim to return all quotations within 24 hours however large projects may take longer.
